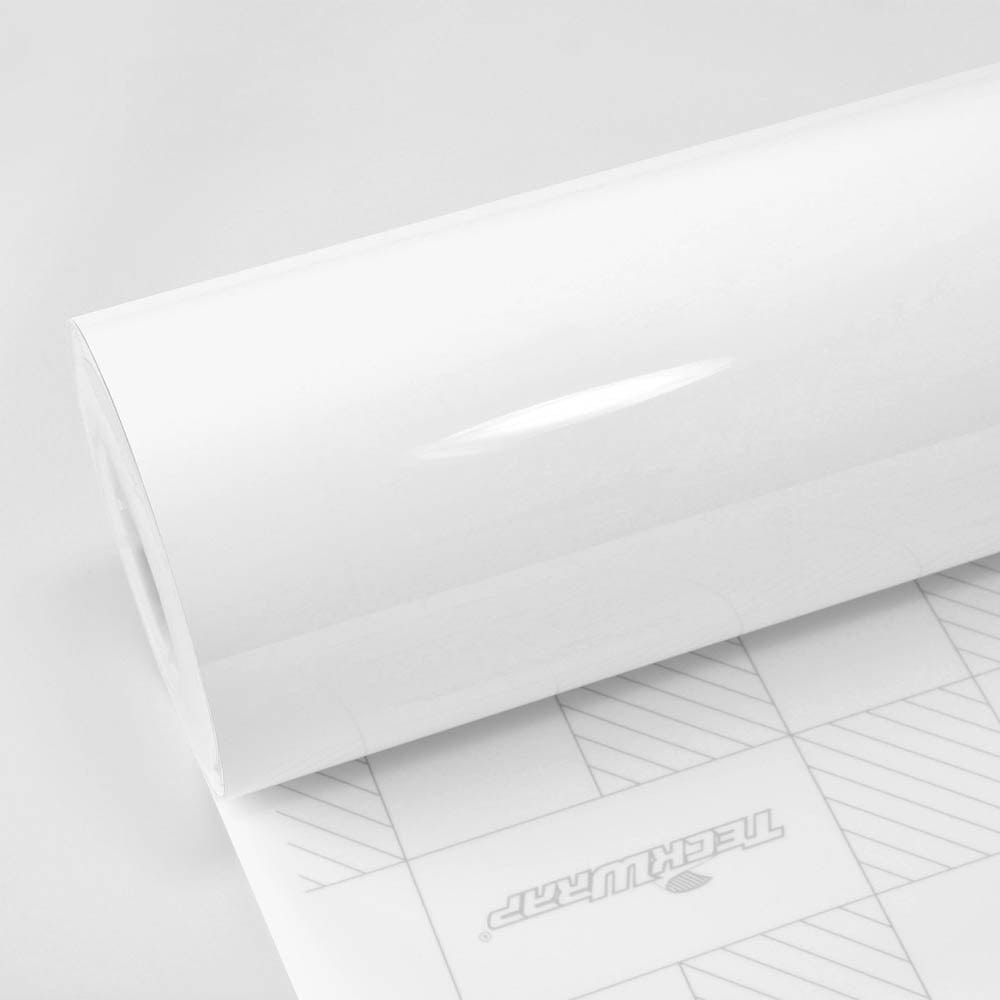

Super White (CG02-HD) Vinyl Wrap

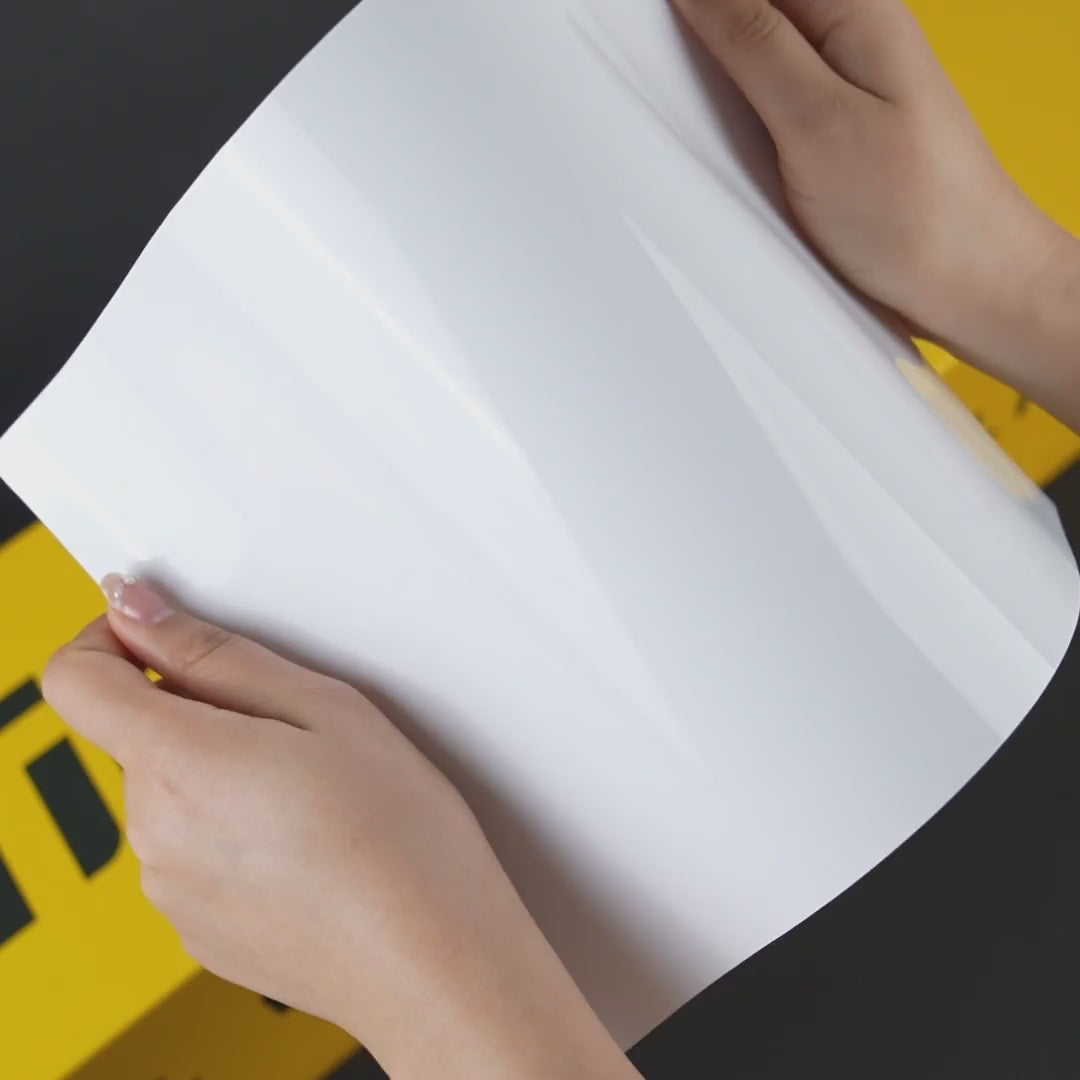

TeckWrap offers new Gloss HD colors that give your vehicle a solid and shiny finish. With a smooth surface free of any orange peel, this high-definition wrap is designed to enhance any project. The material is highly stretchable, making it easy to wrap every edge and recessed area. Plus, the adhesive is safe and hassle-free to uninstall when needed.

A PET protective layer safeguards the film from scratches during installation (ensure it’s peeled off before heating), and the plastic liner enhances gloss and reflection, delivering a professional, long-lasting finish.

Specifications

•  Film Thickness: 110 μm
•  Release Liner Thickness: 142 μm
•  Film Type: Premium-grade polymeric hybrid film with air-release channels
•  Adhesive: Henkel solvent-based acrylic, ultra-weather-resistant, viscosity 1000–3000 cps, thickness 12 μm dry
•  Release Liner: Plastic liner
•  Storage Period: 2 years when stored at +10°C to +20°C, 50% relative humidity, away from direct sunlight, in a clean, dry place.
  Important: Remove the top protective layer before installation to prevent “tunneling.”
•  Durability/Warranty: Refer to the datasheet (click here)

Adhesion and Performance Tests

•  Release Force (N/25mm): Standard 0.10–0.30 | Result 0.18 (23°C, 54% RH)
•  Initial Tack (g/25mm): Standard 800–1500 | Result 1015 (23°C, 54% RH)
•  180° Peel Strength (N/25mm): Standard ≥4.9 | Result 8.1 (23°C, 54% RH)
•  Adhesion Strength: Standard ≥60 | Result 70 (No shifting)

Aging Tests

•  High Temperature (65°C, 7 days): No adhesive residue
•  Low Temperature (-65°C, 10 days): No adhesive residue

Installation Tips

•  Application Temperature: +18°C to +22°C
•  Usage Temperature Range: -30°C to +45°C
•  Tools Required: Standard squeegee with a soft buffer
•  Conformability: Suitable for smooth and medium-curved surfaces
•  Directional: No
•  Overlap Width: 3–4 mm
•  Post-Heating Temperature: 95°C
•  Important: Peel off the protective cap before installation

Notes

• Screen images, colors, and finishes are approximate. Always check a physical color swatch for accuracy.
• Use rolls from the same production LOT to ensure consistent color across your project.
• Scratches during installation or daily use are not covered under warranty.

Our wrap delivers professional-grade performance and aesthetics, suitable for both DIY enthusiasts and professional installers. Take your vehicle projects to the next level today with TeckWrap!
